Many buyers confuse construction wheel rims and mining wheel rims because both belong to OTR off-road steel rims. However, the two are designed for totally different load impacts, terrain abrasion and fatigue requirements. Using construction rims in mining sites will cause premature cracking, deformation and severe safety risks. Anqiang, professional manufacturer of heavy-duty OTR wheel rims, clarifies their differences in this article with a clear comparison table.
Core Comparison Table
| Comparison Item | Construction Wheel Rim | Mining Wheel Rim |
|---|---|---|
| Main Application | Wheel loader, wheeled excavator, road roller, articulated hauler for highway, building and earthwork projects | Large mining haul truck, quarry loader, underground mining equipment, open-pit mine heavy haulers |
| Working Condition | Mixed site: gravel, mud, uneven ground; intermittent heavy impact, relatively controllable rock hits | Extreme harsh environment: sharp rock impact, continuous overload, steep ramp, ore abrasion, heavy vibration cycle |
| Single Wheel Load Rating | Medium to heavy: 5–25 tons | Ultra-heavy duty: 20–60 tons, some super-large rims over 60 tons |
| Rim Structure | 1-piece, 2-piece or 3-piece multi-piece design | Mostly 4-piece / 5-piece multi-piece assembly; reinforced bead seat and lock ring groove |
| Steel Material | Q355B low alloy high strength steel | Q355B / Q420 / Q460 high-strength alloy steel; thicker plate thickness |
| Wall Thickness & Reinforcement | Standard thickness; local reinforcement at welding seams | Increased overall thickness; stress concentration zones (lock ring groove, fillet, bolt holes) with extra reinforcement |
| Matching Tire Size | Common: 17.5R25, 23.5R25, 26.5R25 | Giant OTR mining tires: 27.00-49, 33.00-51, 59/80R63 |
| Non-Destructive Testing Requirement | UT + MT on weld seams | Full UT & MT for weld, groove and bolt hole areas; 100% mandatory inspection for finished rims |
| Surface Coating | Sandblast + standard anti-rust paint | Heavy-duty sandblasting + thick anti-abrasion coating for rock scratch and corrosion resistance |
| Design Focus | Balance of strength, cost and maintainability | Anti-fatigue, anti-shock, anti-rock impact; priority on safety under continuous heavy load |
| Service Life | 2–5 years (depends on site) | 3–8 years; shorter life under severe open-pit mining impact |
Working Environment & Load Difference
Construction sites include road building, bridge projects, urban earthworks. Equipment operates with periodic heavy load, but sharp rock impacts are less frequent. Construction rims are engineered to handle medium dynamic impact while keeping reasonable procurement cost.
Mining sites are far harsher. Open-pit mines have sharp broken ore, steep slopes, repeated full-load start-stop and long-distance hauling. Mining wheel rims face continuous cyclic fatigue and point impact from sharp rocks. Even small impacts may generate hidden microcracks. Therefore, mining rims require thicker steel plate and reinforced stress zones.
Material & Structural Design Difference

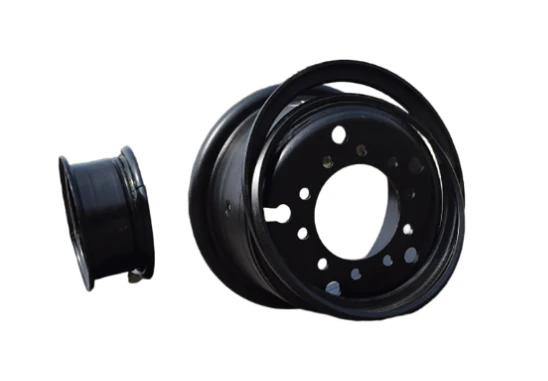

Construction wheel rims usually adopt Q355B steel, with standard plate thickness. 1-piece or 3-piece structures are widely used for wheeled excavators and medium loaders.

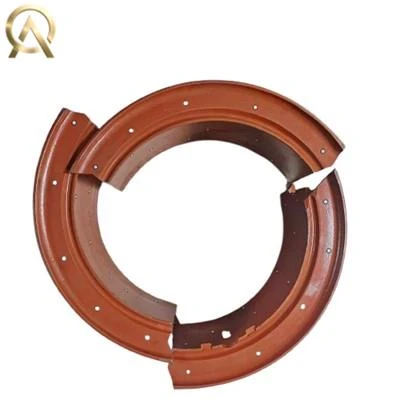

Mining rims upgrade material grade and plate thickness. Most are 5-piece multi-piece rims, including rim base, bead seat, side ring and lock ring. The lock ring groove is the highest-risk area; Anqiang adds local reinforcement in this zone to prevent deformation or ring pop-out under extreme impact.
Important note: All multi-piece rim components (lock ring, side ring, bead band) must be sourced from the same manufacturer. Cross-brand assembly is forbidden for mining rims.
Quality Inspection Standard Difference
For construction rims, manufacturers carry out dimensional check, runout test and weld NDT.
Mining rims apply stricter full inspection. Anqiang implements 100% UT and MT non-destructive testing for every finished mining rim. The inspection covers weld seams, fillet radius, lock ring groove and bolt hole radiating crack zones, to eliminate hidden subsurface fatigue cracks.
Common Misuse Risks
- Installing construction rims on mining haul trucks: Under thickness and insufficient impact resistance, fatigue cracks will appear quickly, causing rim failure and tire burst.
- Using mining rims for regular construction: Over-spec leads to higher purchase cost and heavier unsprung weight, increasing fuel consumption.
- Mixing lock rings of construction and mining multi-piece rims: Different groove tolerance, risk of ring ejection during operation.
How to Select
Road construction, urban earthwork, medium loader: Choose standard construction wheel rims with Q355B material.
Open-pit mine, quarry, heavy mining haul truck: Select reinforced mining wheel rims with higher load rating and full NDT.
For mixed working sites with occasional heavy rock impact: Upgrade to heavy-duty construction reinforced rims after consulting with our engineering team.
