Products Description

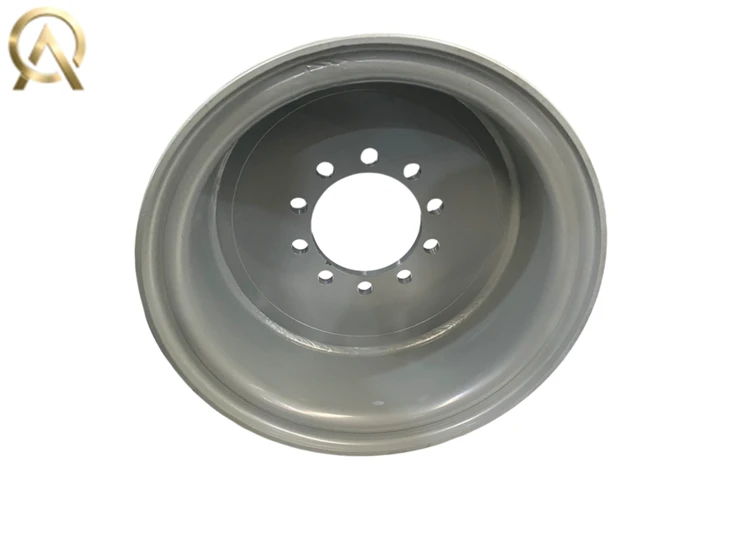

Anqiang underground mining LHD wheel rims are purpose-built multi-piece steel rims for Load-Haul-Dump scooptrams and low-profile underground mining loaders. Underground mines bring severe challenges: narrow drifts, uneven rocky roadways, splash mine water, high humidity, frequent start-stop, sharp rock impact and continuous cyclic heavy loading. Poor-quality rims easily suffer bead slip, flange deformation, weld cracking and seal failure, leading to unexpected machine downtime and high maintenance cost.
video
Core Working Conditions We Adapt To
- Underground hard rock mines, narrow vein mines, ramp haulage roadways
- Wet, muddy, high-humidity tunnel environment with scattered sharp rock debris
- Frequent heavy loading, dumping, turning and braking under full load
- Low-profile LHD scooptram with limited chassis clearance
- Long-time continuous shift operation, high equipment utilization rate
Technical Specifications
| Item | Details |
|---|---|
| Applicable Machine | Underground mining LHD scooptram, low-profile mining loader, underground load haul dump equipment |
| Common Popular Sizes | 8.5‑20, 10.0‑24, 25‑10.00/2.0, 25‑11.25/2.0 and other regular mining rim dimensions |
| Custom Size Range | 5 inch ~ 63 inch |
| Material Option | Q235B, Q355B; special grades available for bulk orders |
| Rim Type | Multi-piece split rim; Tube-type / Tubeless / Solid optional |
| Custom Parameters | PCD, bolt quantity, center bore, offset, lock ring structure, valve hole position as per your requirement |
| Packaging | Steel pallet with separators, protective wrapping + stretch film, anti-scratch and anti-collision for ocean shipment |
Delivery & Commercial Terms
- Production lead time for custom mining LHD rims: 22 working days, calculated after deposit received and drawing/parameter confirmation signed by both sides, excluding Chinese public holidays
- Shipment arrangement: deliver goods within 7 working days after production and inspection finished
- Ocean transit time: approx 25–35 calendar days to destination port; air freight and inland trucking options available
- Payment terms:
▪ Custom non-standard orders: 100% T/T in advance
▪ Standard regular sizes: 70% deposit, 30% balance before shipment
- Shipping: FCL / LCL sea freight supported
Product transportation
About Anyang Anqiang Steel Wheel Co., Ltd.
We are a professional manufacturer focusing on R&D, production and customized supply of special vehicle steel wheels, located in Tangyin Machinery Manufacturing Park, Anyang City, Henan Province, China.
- Factory area: more than 70,000 ㎡
- Equipment: over 100 sets of large forming, welding and precision testing equipment
- Annual capacity: 400,000 sets steel rims, plus 300,000 pcs wheel discs, rim sections and lock rings
- Technical team: 35+ mid-to-senior engineers and technicians, more than 20 independent patents
- Qualification: National High-Tech Enterprise (certified since 2020), ISO 9001 since 2005, IATF 16949 since 2019
- Export markets: Indonesia, South America, Middle East, Africa, Central Asia, Russia and other mining regions. Awarded Excellent Supplier in 2025.
