Heavy-Duty Steel Rim For Dump Trucks, Loaders And Mining Equipment — 20-10.00/1.7

Product Description

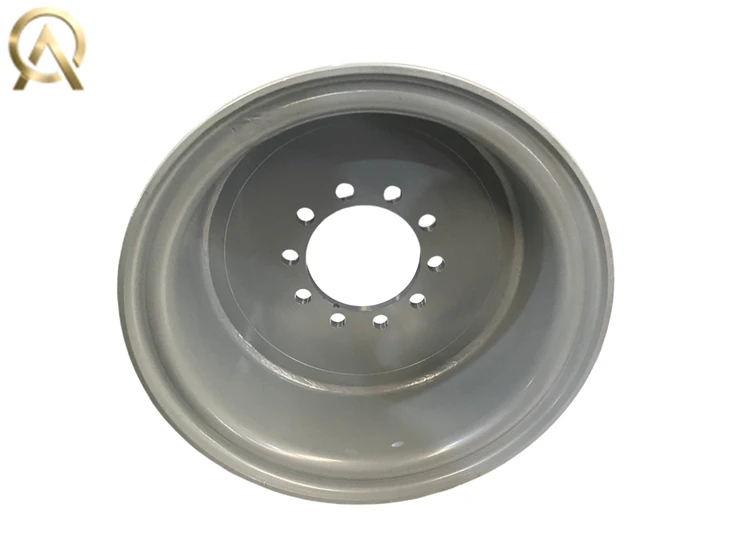

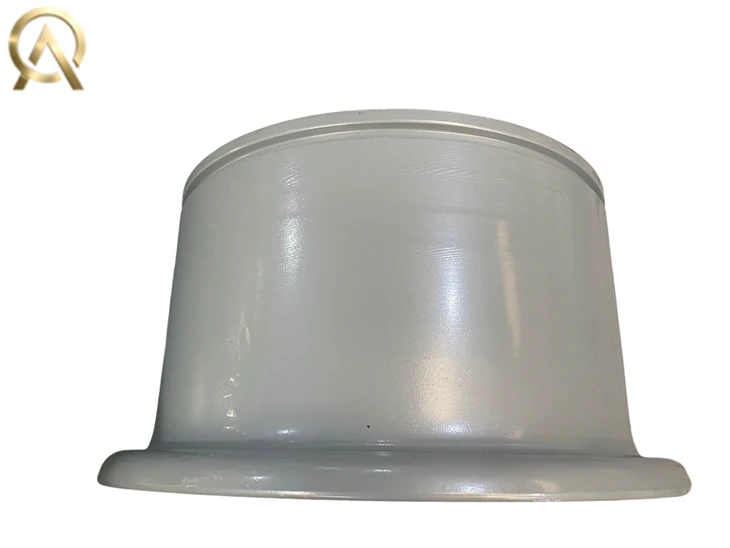

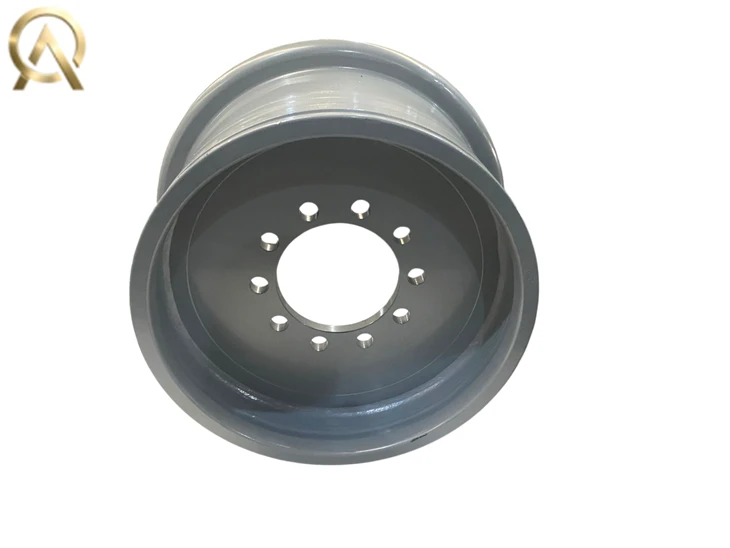

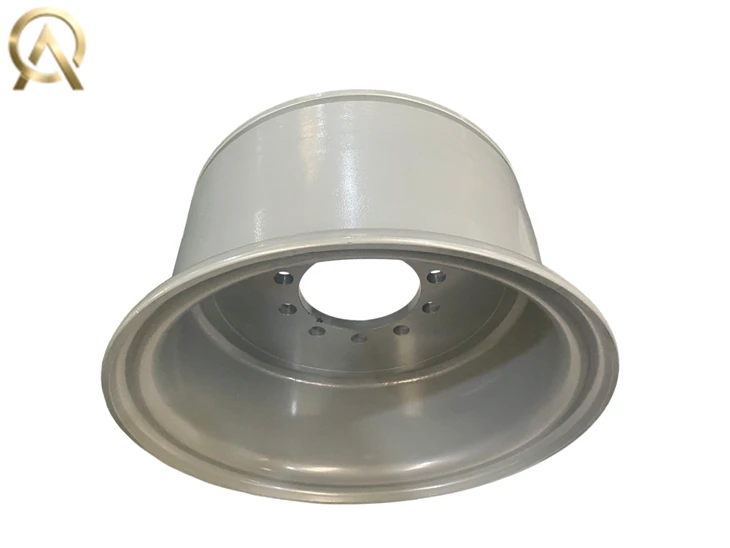

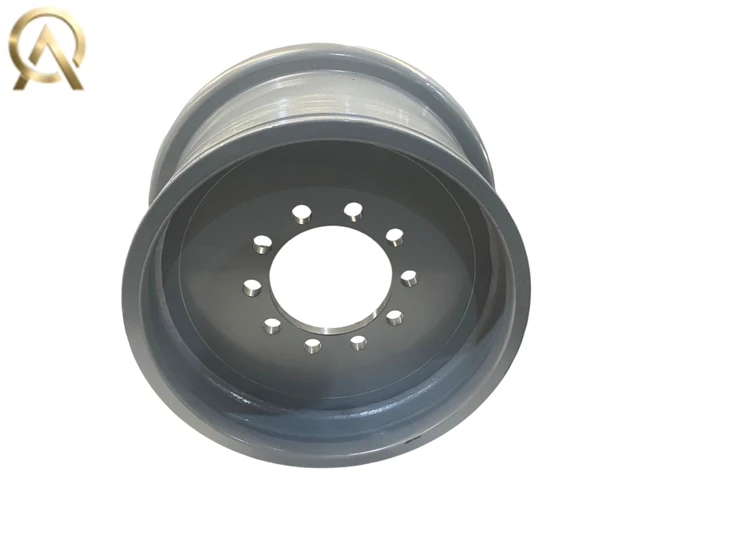

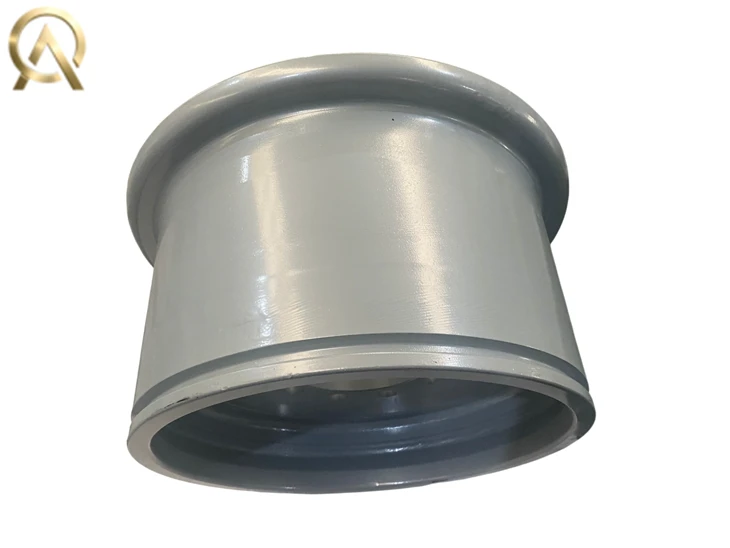

The 20-10.00/1.7 is a heavy-duty, three-piece flat-base steel rim engineered for demanding off-road and industrial applications. With a 20-inch diameter and 10-inch width, it provides a robust mounting platform for high-load bias tires used on dump trucks, wheel loaders, and mining equipment. Manufactured at our Tangyin production base in Anyang, Henan, this rim features a reinforced flange and precise 5° bead seat to handle the severe impact and side-load stresses of construction sites and quarries.

Built for longevity in harsh environments, each rim is forged from high-strength Q355B structural steel and undergoes rigorous quality control:
100% weld seam inspection to ensure structural integrity under heavy loads
Dimensional verification for PCD, center bore, and bead seat profile against ISO standards
Shot blasting + anti-corrosion primer as standard finish; custom RAL colors available
Batch traceability with full inspection reports supplied upon request
As an ISO 9001 and IATF 16949 certified National High-Tech Enterprise, we combine 20+ self-developed patents with decades of OTR rim manufacturing experience.



This heavy-duty specification is widely used across multiple sectors:
 Mining & Quarrying: Haul trucks and articulated dump trucks operating on rough terrain

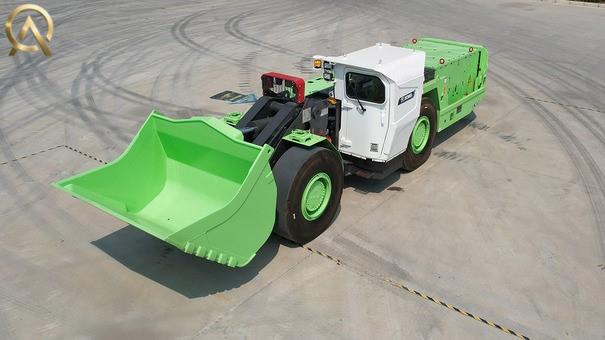

 Earthmoving: Wheel loaders and motor graders requiring high load-bearing capacity
 Heavy Transport: Specialized trailers and logging trucks carrying oversized loads
 Agricultural & Industrial: Large tractors and material handling equipment in severe conditions
Fitment must be verified against your hub drawing or existing wheel. Please send us a photo or technical data sheet for confirmation before ordering.

We specialize in non-standard and custom wheel solutions:
 Adjust PCD, bolt hole size, center bore, and offset to match specific vehicle hubs
 Modify flange height and valve hole position for unique tire requirements
 Upgrade steel grade or wall thickness for extreme load applications
 Apply custom paint colors and brand stenciling
 Supply complete welded wheel assemblies (rim + disc) if needed
All custom orders are produced from your drawing, sample, or technical parameters, with engineering confirmation completed before tooling begins.

Sample or trial quantity available. Drawing and data sheet come back before production, so what you approve is paper, not a container. Non-standard widths and hole patterns are possible; some need new dies, and you hear that in the first reply rather than after you commit.

Q: What tires fit the 20-10.00/1.7 rim?
A: This rim is designed for wide-section 20-inch bias tires. Due to the 10-inch width, it is typically used for heavier loads than standard 8.00-20 rims. Please confirm compatibility with your specific tire model via drawing or sample.
Q: Is this rim suitable for mining applications?
A: Yes. The Q355B steel construction, reinforced flange, and 76kg weight make it ideal for the high-impact environment of mining and quarrying operations.
Q: Can you match a specific PCD and offset?
A: Absolutely. We can customize the PCD (currently 225mm), offset (101mm), and center bore to fit your vehicle's hub exactly.
Q: What is the lead time for this specification?
A: Approximately 22 working days from receipt of advance payment and confirmed drawings (excluding Chinese public holidays). Shipment is arranged within 7 working days after production completion.
