Products Description

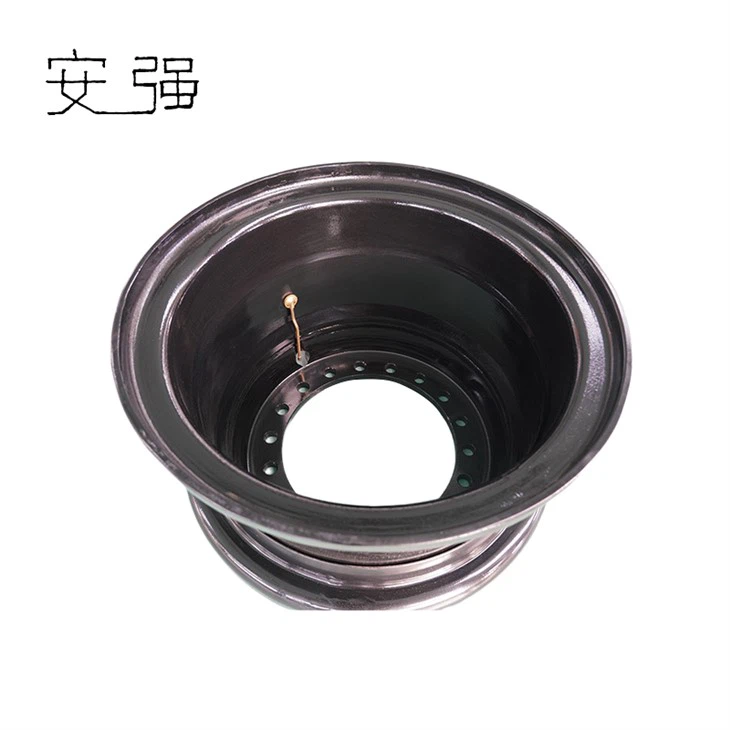

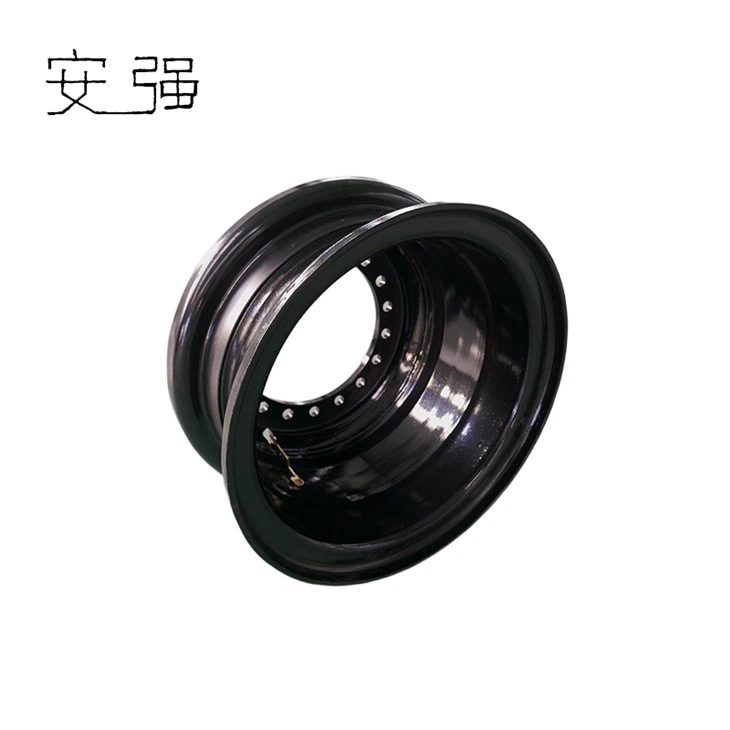

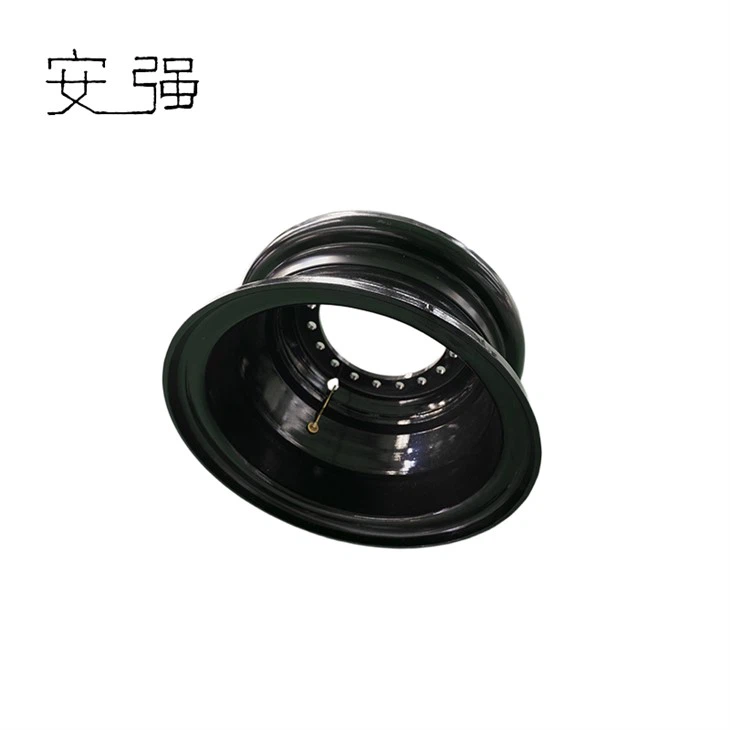

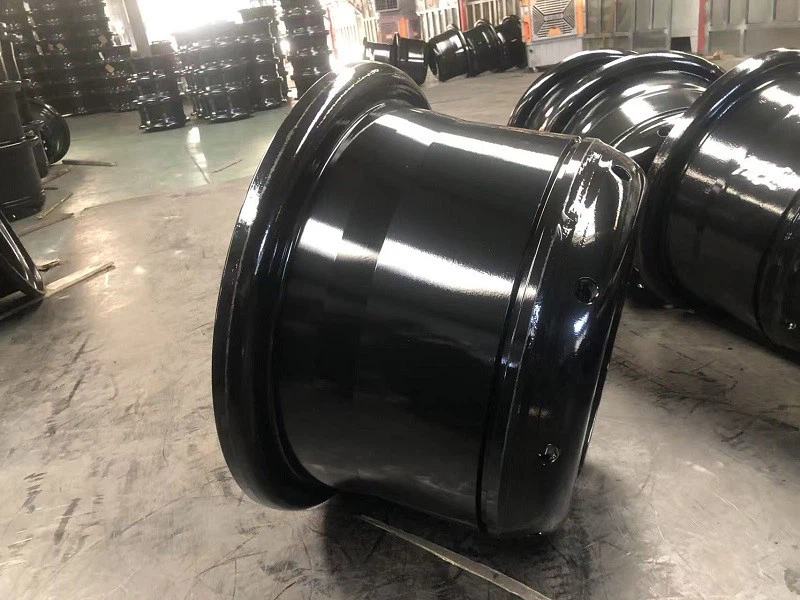

High quality mining wide body vehicle rims are essential components for mounting tires and securing them to the axle.

Structural Components

A rim assembly typically consists of a cylinder, a seat, a flange, and a locking ring. A five-piece rim assembly consists of a cylinder, a seat, two flanges, and a locking ring. The flange provides axial support for the tire, while the seat provides radial support.

Dimensions

Wide-body mining vehicle rims are larger to accommodate the heavy loads required. Common sizes include: 25-10.00/2.0, 25-11.25/2.0, 25-11.5/2.0, and 29-13.00/2.5.

Contact now

How to properly install wide-body mining vehicle rims

Rim installation requires special tools.

1. Tire deflating

If you need to replace the rim, completely release the tire pressure (by removing the valve core) to prevent tire pressure from pushing out the rim components and causing a safety accident.

2. Component positioning and assembly

First, place the seat ring firmly into the rim barrel, then install the rim, ensuring a tight fit between the rim and seat ring with no noticeable gaps. Finally, install the locking ring, using a special pressing tool to press it into the groove. Do not strike the locking ring with a sledgehammer, as this can easily deform the ring and cause localized stress concentration on the rim.

3. Tire inflation

Before inflation, ensure that the rim and tire are properly aligned. When inflating, first inflate to 50% of the rated pressure, let it sit for 5 minutes, and then check for even contact between the rim and tire. Then, inflate to the rated pressure. According to the tire manual, the typical pressure for wide-body mining vehicle tires is 8-12 bar. Do not over-inflate, as this can cause excessive radial pressure on the rim.

How to Properly Use Wide-Body Mining Vehicle Rims

Do not overload: The rim's load capacity must match the vehicle's rated load. Overloading can cause the rim to bear radial loads far exceeding the design value, leading to plastic deformation of the cylinder and a sudden increase in weld stress.
Ensure smooth starting and braking: Mining roads are often gravelly and sloped. Avoid sudden acceleration when starting and sudden braking. Sudden braking can cause localized overheating of the rim. It is recommended to use a retarder to assist braking and reduce the frequency of service braking.
Avoiding road obstacles: If you cannot avoid raised rocks or deep potholes while driving, slow down and drive slowly to prevent the instantaneous impact load generated by the tires passing over the obstacle from being transferred to the rim, which could cause localized deformation or cracking of the rim.

Product Advantages

The company conducted a competitive advantage analysis to identify its strengths and weaknesses compared to its rivals.

Total Life-Cycle Cost

The high quality mining wide body vehicle rims employs high-strength materials and advanced manufacturing techniques, significantly extending service life and reducing replacement frequency to deliver a 'one-time investment with long-term returns'.

Attendance and reliability

High quality mining wide body vehicle rims possess extremely high structural strength and fatigue resistance. This minimizes unplanned downtime for maintenance, ensuring continuous vehicle operation and directly increasing the operator's core profits.

Lightweight and payload

Employing advanced design and lightweight, high-strength materials, it achieves significant weight reduction while maintaining load-bearing capacity, directly enhancing revenue per transport journey.

Ease of maintenance

The harsh maintenance environment of mining operations was thoroughly considered during the design phase. This enables faster and simpler routine inspections and maintenance, significantly reducing the labour intensity and technical requirements for maintenance personnel.

Passive safety and heat dissipation

Through scientifically engineered cooling ducts, the operating temperatures of the braking system and tyres are effectively reduced, thereby delaying tyre ageing and preventing blowouts caused by excessive heat, as well as mitigating thermal fade in braking performance.
